CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A

Name: CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
Brand: CNLINKO
Price: 8.90 USD

Wholesale CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A from china suppliers

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YZ-20-C04PE-03-001

MOQ : 10

Price : $8.90-9.90

Type : Powercon

Application : Power

Gender : Male

contact diameter and number : 2.7*4

Rated Current : 20A

Operating Voltage (AC.V.RMS) : 500V

Withstanding Voltage(AC.V)1 Minute : 2500V

Protection Level : IP68

Connecting Mode : 1/4 Bayonet Connect

Flammability Rating : UL94-V0

Durability : More Than 500 Times

cable specification : 2.5m㎡~4m㎡/14~12AWG

Copper Needles : Copper Alloy(Gold-Plated)

Contact Now

CNLINKO M20 4 pin waterproof connector plug socket Male Female Panel mount power cable connector Rated current 20A

Product Description

CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	2.5mm2 /14~12AWG
Diameter range	Φ9.0mm ~Φ13.0mm
Contact diameter×Qty	4 Pin
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

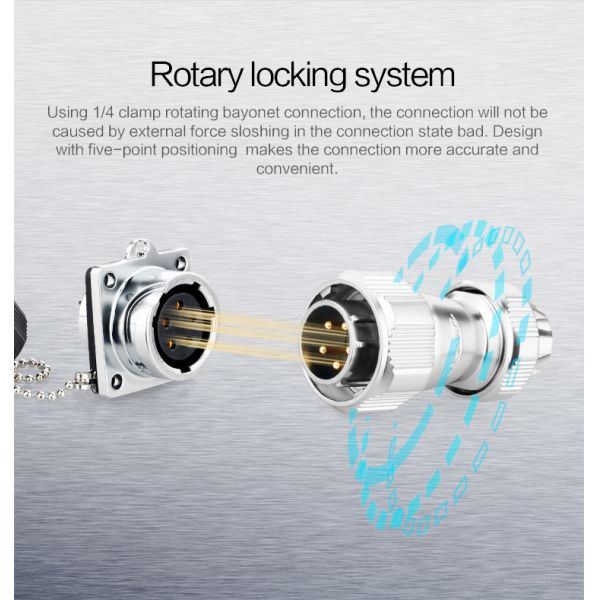

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A

CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A Images
