Cnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB Connector

Product Categories
Shenzhen Connectorworld Technologies Co.Ltd.
Contact Now

Cnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB Connector

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : BD-24-USB3-MP-MP-1M-001

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $9-10

Shape : ROUND

IP level : ip68

Type : usb

Application : Data, Industrial Connectivity

Gender : Male

Protect level : IP65/IP67

Housing and insulating parts : high-performance engineering plastics

Color : Black

Connector type : USB Connector

Feature : Fast Installation

Rated Voltage : AC 5V

Rated Current : 900mA

Package : Carton

Contact Now

CNLINKO BD24 Plastic USB Panel Mount Connector IP67 Waterproof USB 3.0 Data Connector

Product Description

Cnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB ConnectorCnlinko M24 USB 3.0 Data Connector Panel Mount IP68 Waterproof USB Connector

Specifications
Specifications

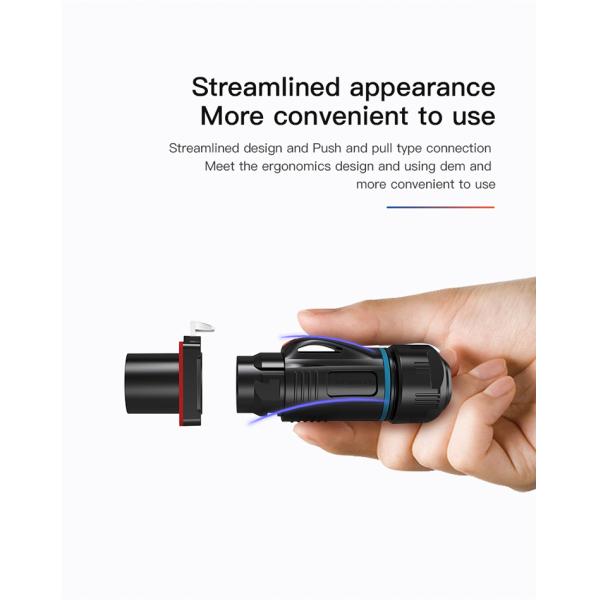

Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5mm ~Φ6.5mm
Contact diameter×Qty 9PIN(3.0)&4PIN(2.0)
Current rating(A) 1.5A
Temperature rise /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0

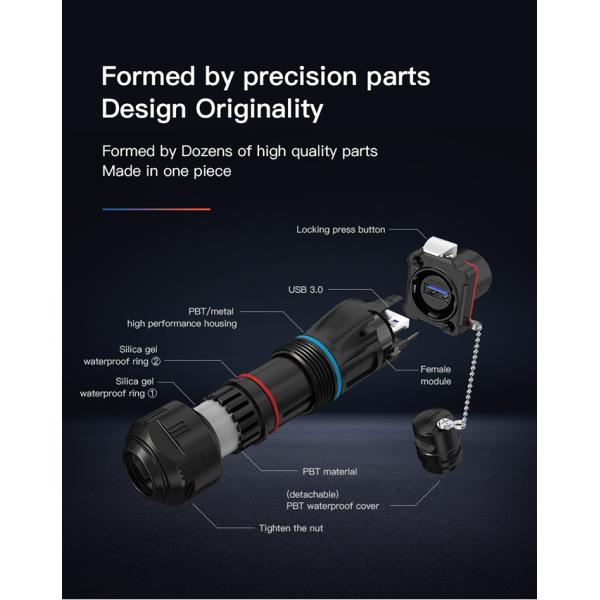

Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)

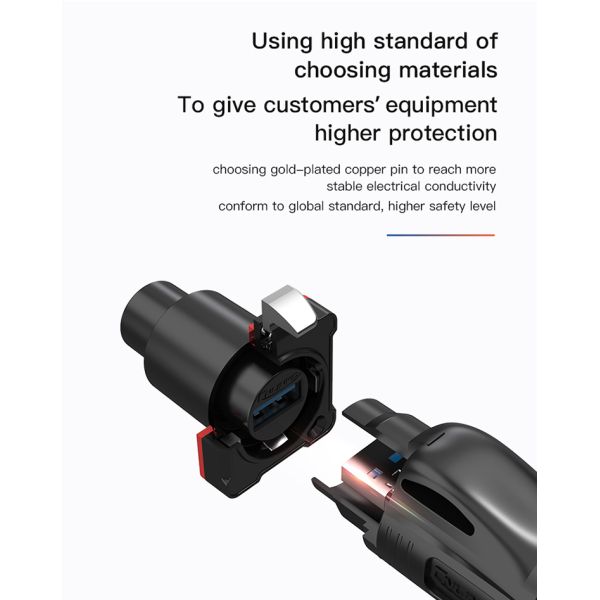

Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
